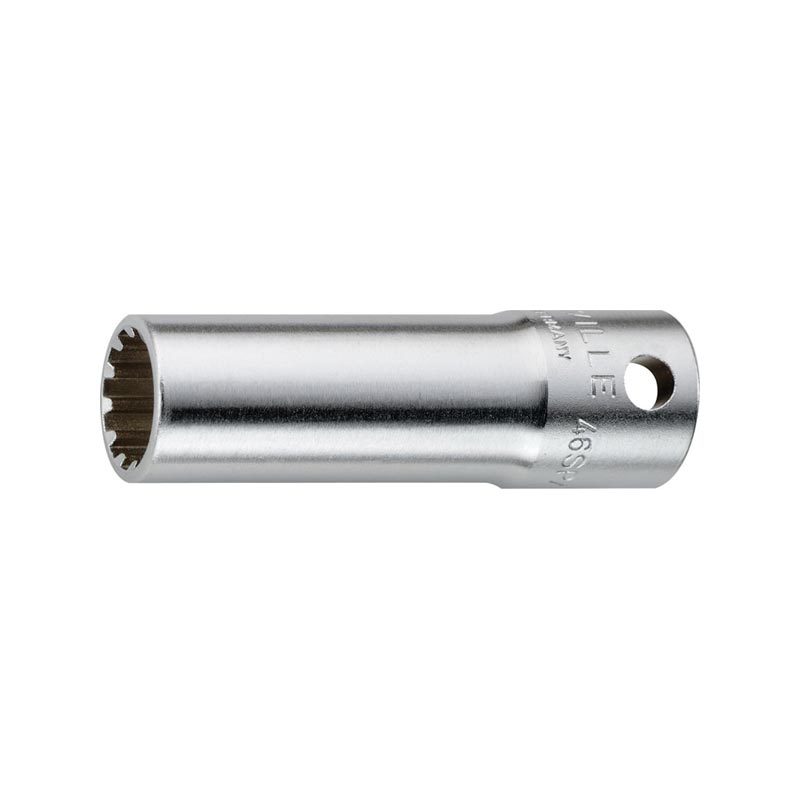

Stahlwille 02021012 Spline-Drive-Socket 46aSP 12 - 3/8
Product.Nr.: 02021012
Manufacturer: Stahlwille
USD 44,97
-
Available, low stock
- weight 0,05 kg
product description
- Inside square 10,0 mm - 3/8" acc. to DIN 3120 - C 10.0, ISO 1174
- Spline Drive
- for disassembling jet engines, series CFM 56
- extra deep bolt clearance
- for manual use
- Surface: chrome-plated
- Material: HPQ®-High performance steel
- MS-33787, MIL-W-8982
- Made in Germany
Technical Details
 No | 02021012 |
| Spline Gr. | 12 |
 " | 3/8 |
| d1 mm | 13,7 |
| d2 mm | 16,5 |
| d3 mm | 8,6 |
| L mm | 54,0 |
| t1 mm | 9,0 |
| t2 mm | 42,5 |
| EAN | 4018754109142 |
