HAZET 4932-17

Name: HAZET 4932-17
Brand: HAZET
SKU: 4932-17
Price: 1583.67 USD

Product.Nr.: 4932-17

Manufacturer: HAZET

USD 1.583,67

There are no reviews for this product

product description

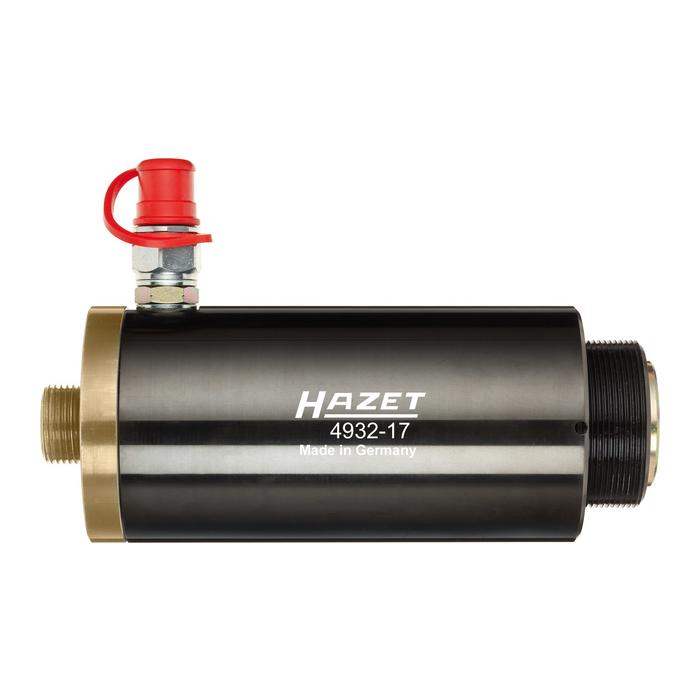

Compact hydraulic cylinder with a capacity of 17 tons
Working pressure: max. 700Â bar
Convenient spring reset
For threaded spindle 4932-TR20 and nut 4930-2
Traction side: M27 x 2, alternatively M42 x 2, using the optional adapter
Pressure side: 2-¹/₄â³Â -Â 14 UNS
inside thread: TR 20, alternatively M20, using the optional adapter
Stroke: 45Â mm
OutsideÂ â: 80Â mm
Cylinder height - retracted: 206Â mm / extended: 251Â mm
Including coupling, protective cap and adapter 4932-MÂ 20
Weight: 5.5Â kg
Made in Germany
Net weight: 5.5 kg
