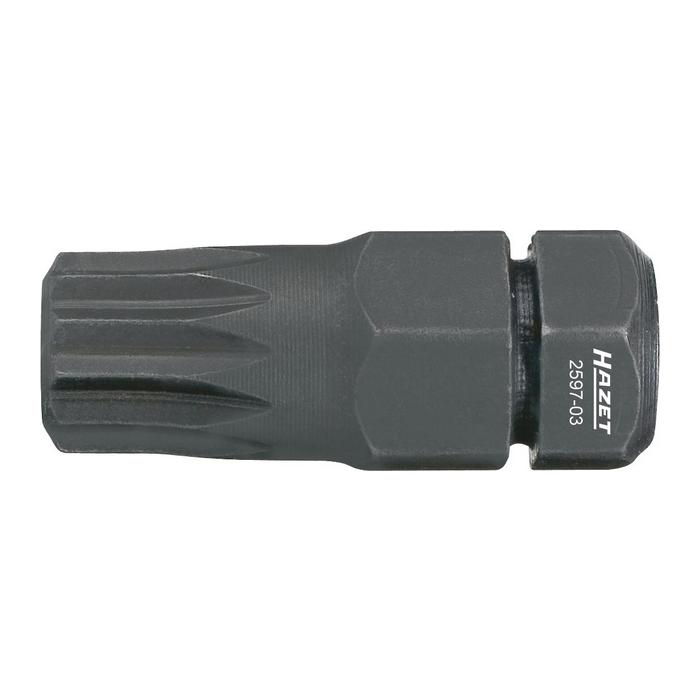

HAZET 2597-03

Application:
Door alignment as well as installation and removal of doors on
VW Golf 5 (model years 2003→ 2008), Golf 6 model year 2008→ , Passat B6, Caddy model years 2004→ 2010, New Beetle model year 2011→ , Sharan 2 model year 2010→ , Tiguan model year 2011→ , Touran model year 2010→ 
ŠKODA Superb model year 2008→ 

• Together with curved bit holder HAZET 2597
• For screws with internal serration (XZN) M 8
• Similar to DIN 65254
• Hexagon drive ISO 1173 C8 (5/16″)
• Made in Germany
• Drive: Hexagon, solid 8 (5/16 inches)
• Output: Internal serration profile XZN
• Wrench size: M8
• Dimensions: 21 mm
• Net weight: 0.02 kg
• Special purpose steel for excessive use
• High-precision, close-tolerance fabrication of tips and edges
• For electric and pneumatic screwdrivers as well as for manual operation
• Tough and hard for threaded screws (hard screw-joint)
• Permanent hardness of 59-61 HR C for high demands in trade and industry
• High torque values, well above DIN standard, over a long service life
