HAZET 9040S-10 Spiral hose
Product.Nr.: 9040S-10
Manufacturer: HAZET
USD 75,69
product description
- Application:
Flexible connection of pneumatic tools - High flexible polyurethane hose with length of 7.62 m and 10 mm inside Ø
- With 360° rotary joint on the connecting pieces
- Burst pressure according to DIN: 60 bar
- Working pressure: 10 bar
- Maximum flexibility
- Working length: 50% to 80% of the hose length
- Silicon-free
- Highly abrasion-resistant
- Dimensional stable
- Maximum flexibility
- Length: 7.62 m
- Air inlet thread: 3â8â³
- Hose inside Ø: 10 mm
- Air connection inlet (from the compressor): Innengewinde (IG) 12,91 mm (1/4â³), Kupplungsstecker 7,2 mm Typ 1 (DE/AT/SI/HU/CN/IN/PT/RU/PL/RO/TR)
- Air connection outlet (to machine): Außengewinde (AG) 12,91 mm (1/4â³), Kupplungsbuchse 7,2 mm Typ 1
- Coupler plug: nominal size 7.2 (included)
- Temperature range: -20°C to 60°C
Technical Details
No | 9040S-10 |
Weight Kg | 1.050 |
EAN | 4000896212361 |

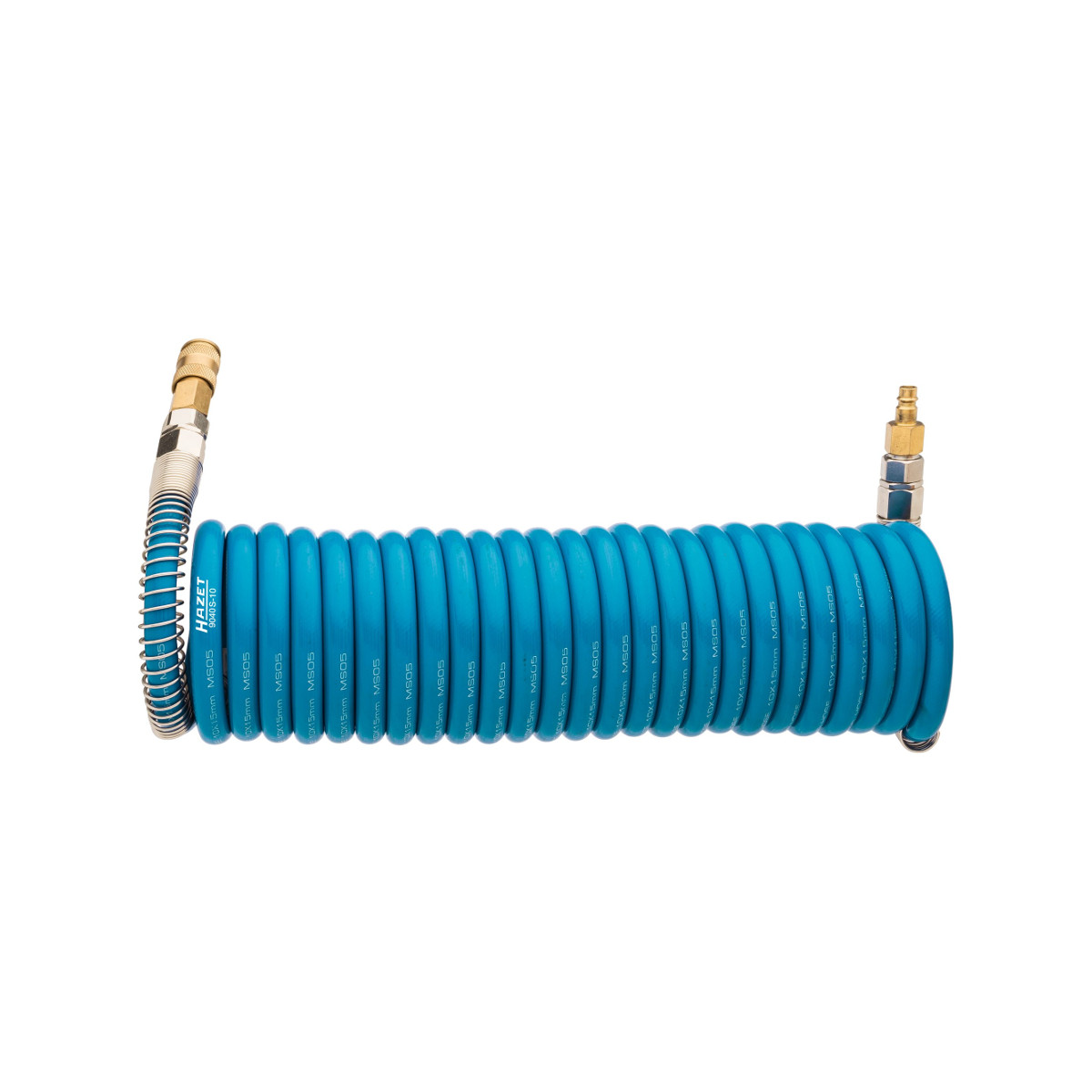

Please note: The image shows a representation only and is provided by HAZET.
