Bessey STBU40-17-15 U-shaped high-performance clamp, heavy duty STBU 500/175
Product.Nr.: STBU40-17-15
Manufacturer: BESSEY
USD 340,49
-
Currently not available.
- weight 7,96 kg
product description
BESSEY U-shaped high-performance clamp, heavy duty STBU 500/175
- Clamping force up to 22,000 N at tightening torque of 80 Nm
- Double-sided step-over clamping, specially suited for T-profiles and double T-profiles
- With 19 mm hexagonal bolt on the end of the spindle
- Long life due to heat-resistant pressure plate with sintered steel insert, which can be tilted up to
Technical details
 No | STBU40-17-15 |
| Opening | 500 mm |
| Throat depth | 175 mm |
| Clamping depth c | 150 mm |
| Clamping depth d | 110 mm |
| Rail | 40 x 20 mm |
| Weight approx. | 7.96 kg |
| PU | 1 qty. |
| EAN | 4008158027098 |

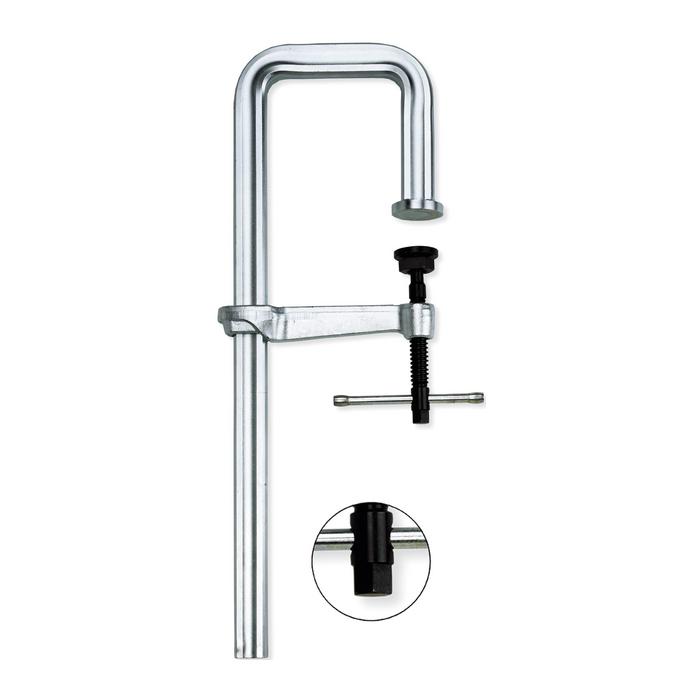

Please note: The image shows a representation only and is provided by BESSEY.
